An EffiBOT, XS version, compact, handy and usable with multiple equipments for your logistics applications.
A COMPACT AND POWERFUL AMR
EffiBOT XS is a bi-directional and hybribe robot able to :

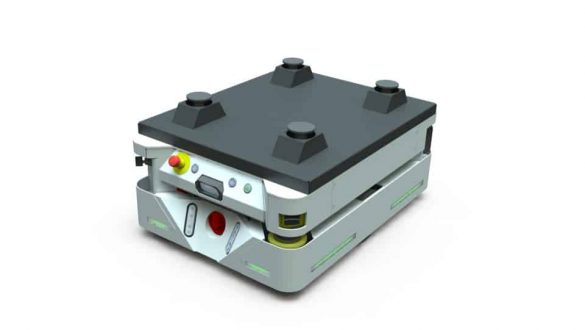

- Carry and transport your loads, (Lift-XS)

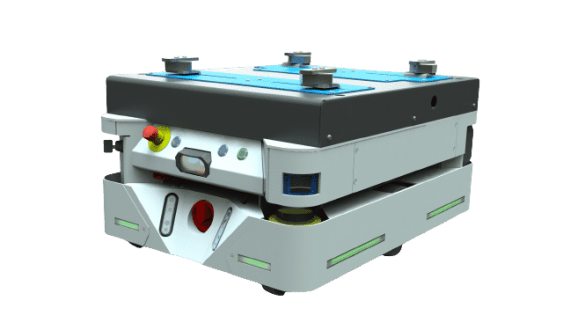

- Grip them, (3D-CartGRIP XS)

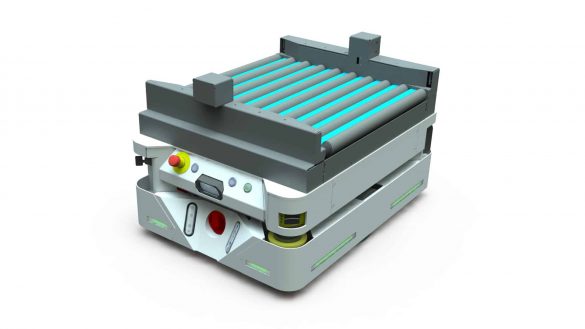

- Convey them, (Convey-LINK XS)
Just like the EffiBOT, the follow-me mode is available on this AMR, by simply pressing the button on its console.
Apart from applications requiring person tracking, the robot transports your loads in a completely autonomous and safe way.
Useful dimensions and capacities of the AMR
- Load and lift capacity: 300 kg
- Length: 800 mm
- Width: 580 mm
- Height: 300 mm
Embedded equipments
Our EffiBOT-XS is equipped with a very robust and efficient navigation system
- A set of sensors analyzes the environment 360 degrees,
- The location is based mainly on the natural environment and can also be artificially reinforced in open areas,
- The navigation system allows a speed of up to 7 km/h (2 m/s).
Our EffiBOT-XS is versatile
- It carries up to 300 kg,
- It is fully autonomous by recovering its destinations via the ERP
Our EffiBOT-XS complies with the Machine Directive 2006/42/EC.
